Our customers asked for more from their material lifting solutions: more versatility, more usability, and more reliability.

We listened.

Introducing the Reid Material Lift (RML) – The RML offers two versatile configurations in one, conventional forward facing and counterbalance*, with the ability to switch between the two, tool free in minutes.

It has many key features designed to increase safety and reliability; so, no matter the application, the RML has you covered.



‘’The RML is not just another material lift, it’s the only material lift you will ever need’’



Application Overview

Vertical material lifting presents a common challenge across many industries, where the need for increased productivity, versatility and safety is critical.

The RML provides solutions that can significantly improve these aspects, making it a key asset in a wide range of industries and applications such as:

  • M&E servicing and installation facilitation

  • Glass installment

  • Structural steel erection

  • General commercial & residential construction

  • Decommissioning and demolition work

  • Warehouse operations

Forward Facing

Counterbalance



Configurations

Forward Facing

In its forward facing configuration, the RML is ideal for many general applications, from supporting structural components such as steel beams, to aiding HVAC system assembly at height.

The RML’s lifting capacity of up to 450Kg** and a height of lift up to 7.5m** is more than sufficient to safely support many of these activities.

Counterbalance

Configured in its counterbalance* arrangement, the RML is able to work close to edges or walls for applications such as perimeter M&E installation and facade glass replacement.

Providing the same height of lift** range combined with the same maximum load capacity** the RML is more than capable whichever configuration you choose.

* Counterbalance basket and weights sold separately.

** Capacity varies by model version, please refer to the table below.



Key features and spec

  • Full set of 360° castors with 2 locking castors - Enables easier maneuverability of the unit at ground level, and allows safer and easier micro adjustment when working at height

  • Virtually silent winch - This helps reduce noise emissions, benefiting ‘live’ worksite environments and where communication with the operators at height is key

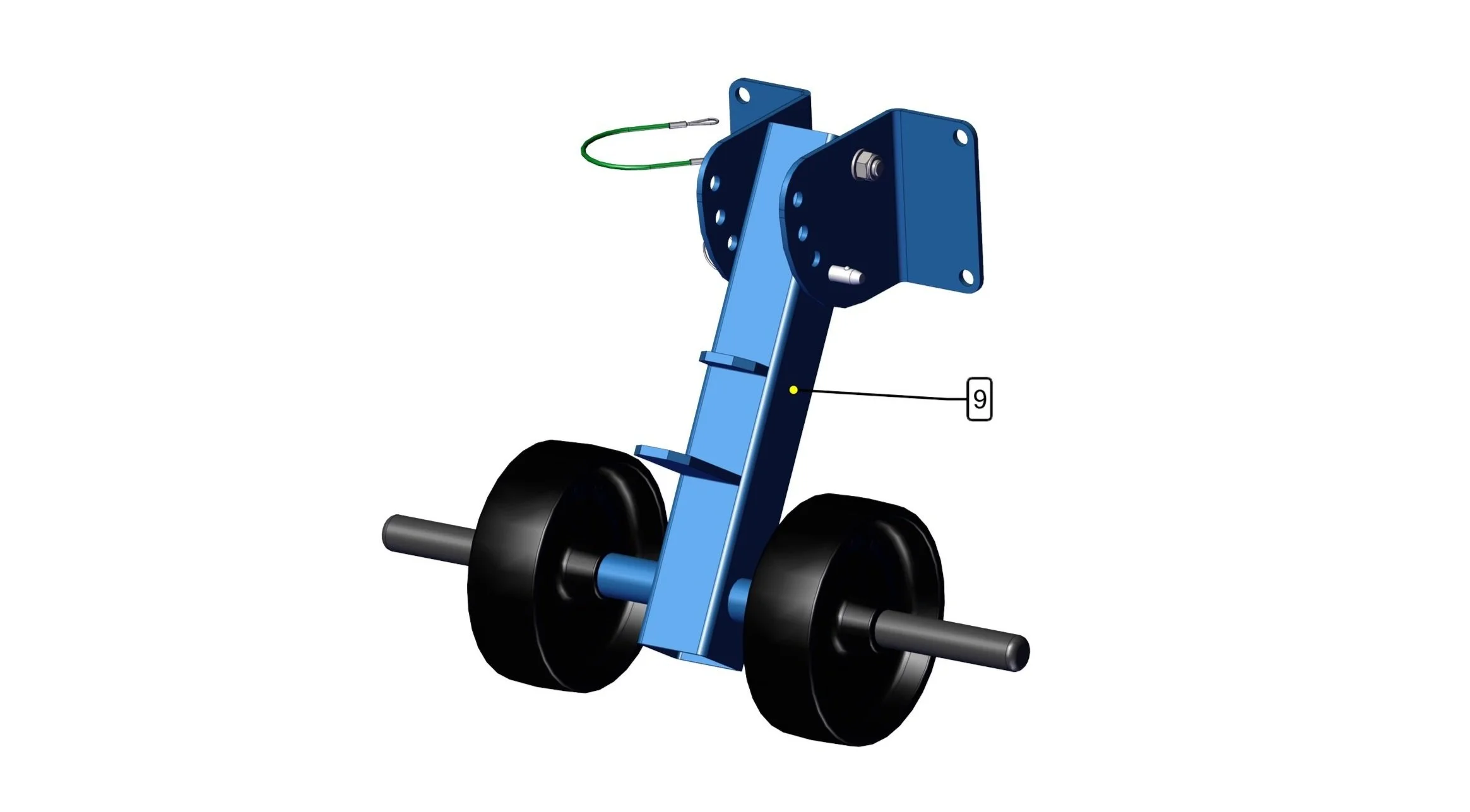

  • Easy to transport - The RML comes equipped with standard horizontal, rough ground transport wheels, enabling the unit to be moved safely over uneven surfaces and into vehicles

  • Unique rear pulley – Wide rear pulley allows an even cable feed onto the winch drum, giving smooth operation and less cable stress

  • Quick change rear pulley – Quickly remove the rear pulley with just a single bolt, streamlining repair times and minimising downtime

  • Hardwearing alloy pulleys – Standard across the range to increase service life and aid smooth operation

  • No ball lock pins - Detachable parts have a high chance of getting lost, that’s why the RML uses captive plunger pins preventing lost pins that cause downtime

  • Anti-twist galvanised steel cable – Cable replacement due to tangles and premature wear is common on other material lifts; to avoid waste and additional operating costs, we included a galvanised steel, anti-twist cable in all versions

  • Tool free - Easily converted from forward facing to counterbalance configuration without the need for tools

RML Versions

RML30

RML45

RML60

RML75

*Measurement uses standard REID fork attachment

Load Centre

Load centre is a key factor when considering using any RML system. The working load limit changes depending on where the centre of gravity is and the load should always be measured to ensure it does not exceed the maximum capacity.

Please refer to the Assembly & Operations guide for more details.



Accessories

To enable the RML to be used in multiple applications we are also able to supply 6 key accessories in addition to the standard fork attachment.



Fork Extensions

These add support to larger dimension objects

Boom Arm

Often used for shackle loads or in many cases with the addition of a glass lifting solution

Pipe Cradle

Ideal for supporting pipes and ducting in M&E applications

Load Platform

Allowing items that require additional support to be lifted on a flat platform

Weight Basket

Add to any system to convert to the Counterbalance confirguration

Hand Weights

200kg Required for Counterbalance use



Spare Parts

Spare parts for all versions of the RML are readily available, this covers a wide range of components, allowing for seamless operation and longevity across our models.
