Lightweight & Strong PORTADAVIT
Our PORTADAVIT is a rapidly deployable, lightweight lifting system that offers a working load limit of up to 1000kg and can be easily rotated 360 degrees under a full load. The system can be operated by just one person and can support both goods and personnel lifting.
Our PORTADAVIT comes in two configurations the PORTADAVIT 500 and the PORTADAVIT 1000 both of which are designed for the lifting and lowering of goods and personnel.
Key features
EN795:2012 and ATEX Certified
Can support goods and personnel lifting; Goods WLL of up to 1000kg and Personnel WLL of up to 300kg
Ease of assembly with the use of just one pin, no tools required
Can be rotated 360° under a full load
Engineered with easy radius adjustment
Engineered designs and bespoke sections reduce weight, providing lightweight portability
Configurations
The PORTADAVIT is available in a range of standard configurations. It can also be customised in line with specific requirements and interchangeable components (subject to WLL rating).
“The perfect lightweight davit with an impressive lifting capacity”
Choose your system

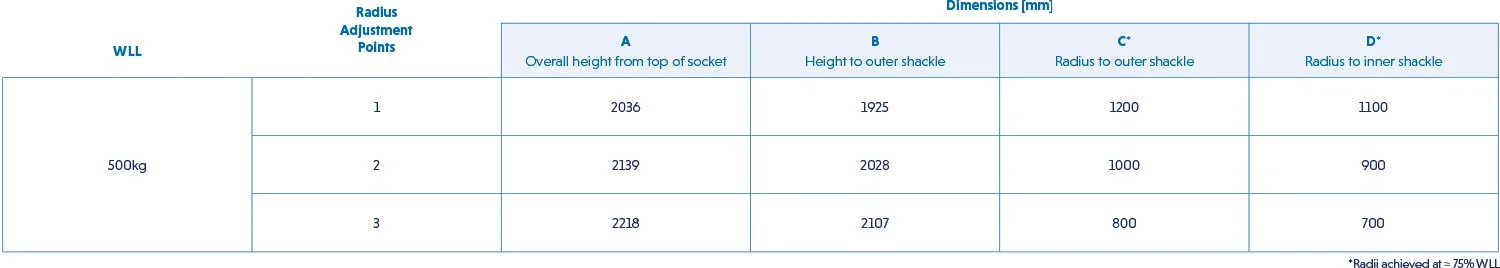

PORTADAVIT 500
EN795:2012 certified
ATEX certified [Zone 2 standard, Zone 1 as an option]
Fall arrest capacity – 1 user
Personnel capacity up to 250kg, goods capacity up to 500kg
Winch capable
Radius adjustment points
Shackle lifting points
Double shackle head for easy attachment of accessories
Suitable for use with our range of sockets
PORTADAVIT 1000
EN795:2012 certified and meets the requirements of IRATA ICOP
ATEX certified [Zone 2 standard, Zone 1 as an option]
Fall arrest capacity – 2 user
Personnel capacity up to 300kg, goods capacity up to 1000kg
Three radius adjustment points
Shackle lifting points
Suitable for use with our 95mm range of sockets
Our portable lifting systems in action
For more information on what our aluminium lifting solutions can do, check out our list of case studies.
