PORTA GANTRY RAPIDE Accessories

We have a range of accessories that are fully compatible with our unique and innovative PORTA GANTRY RAPIDE range. The aluminium gantry accessories include; gated trollies, single and double sheave carriers and a variety of winch brackets that are designed to support your unique lifting and lowering operational needs for goods or personnel applications.

Master Link Trolley

Our Gated [patent pending] Master Link Trolley can be used when additional headroom or clearance is not an issue and the convenience of a large opening for the attachment of various hoists is preferred. This innovative product enables multiple trolleys to be attached to the beam after the system has been fully assembled and can also be locked in position on the beam.

Close Coupled Trolley

Our Gated [patent pending] Close Coupled Trolley can be used when additional headroom or clearance is needed below the beam. This trolley can be attached to the beam after the system has been fully assembled.

Sheave Carrier

Sheave carriers enable the use of winches or retrieval fall arrest devices with the PORTAGANTRY RAPIDE. They are detachable and can incorporate either one or two pulley wheels to act as guides for cables or ropes. All have 500kg max WLL.

Sheave

Sheaves can be retroactively fitted to the PORTAGANTRY RAPIDE enabling winches or retrieval fall arrest devices to be attached to the trap plate or upright of the gantry A-frame.

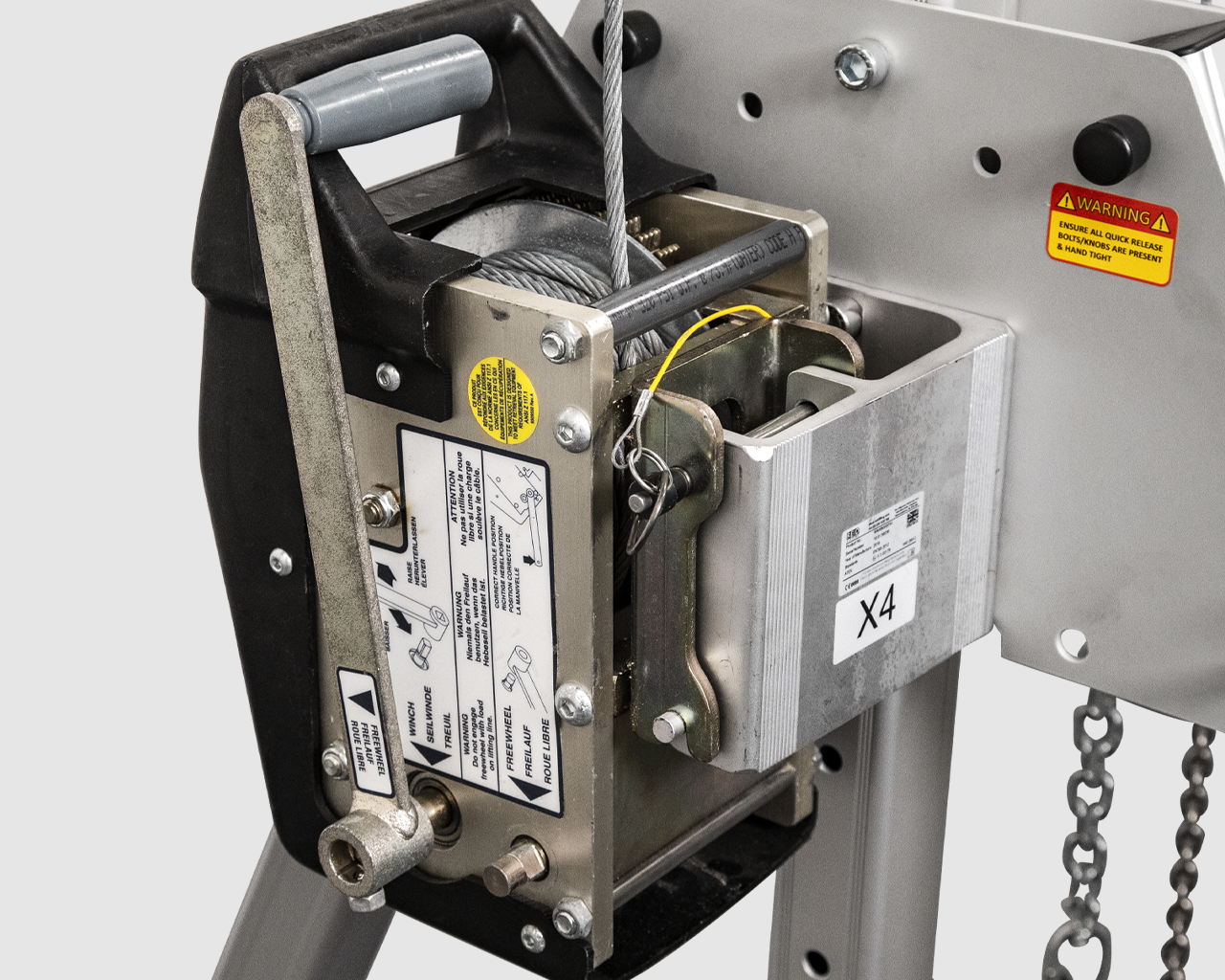

Winch Brackets

Winch brackets can be attached to the trap plates or to the upright of the gantry A-frame, depending on the winch and its orientation. REID offers a wide range of winch brackets for common goods and personnel winches and retrieval fall arrest devices.
